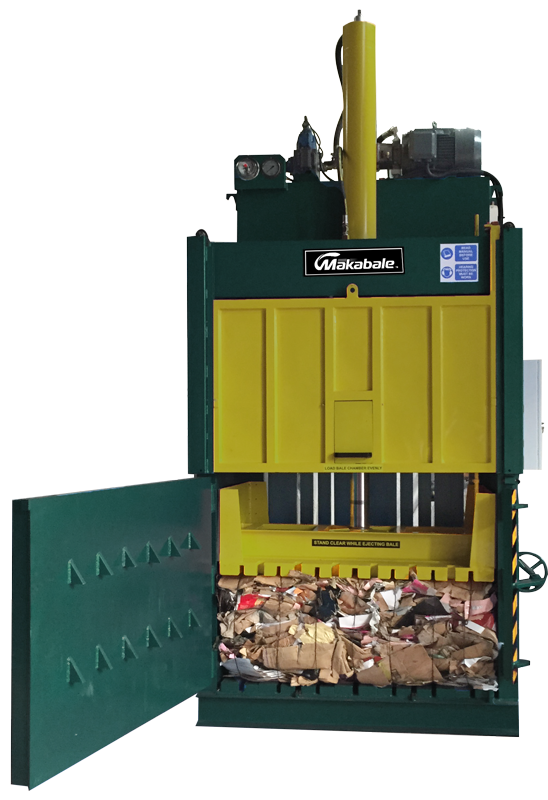

CARDBOARD BALER / MILL SIZE BALER

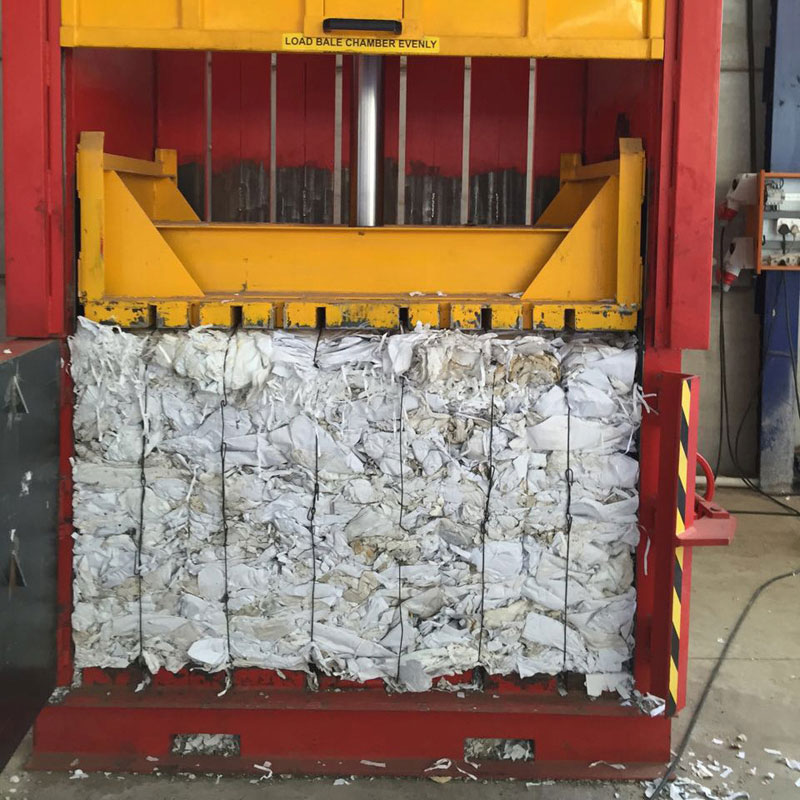

The Vertical Cardboard Baler / Mill Size Baler Is A Perfect Baling Machine For Efficiently Making Mill Sized Bales.One of the most popular hydraulic baling machines, the Vertical Cardboard Baler, is a rugged, high-quality, steel-built machine designed to last. Makabale has added many industry-leading features to ensure the baler machine's efficiency, flexibility, and quality, helping you save time, space, and money. This vertical cardboard baler is designed to allow a single operator to safely and easily load the material into the chamber. Once loaded, the operator simply closes the door, and presses a button on the control panel to start compressing. The ram compresses the material in a compression ratio up to 12-to-1 and holds the material in a compressed state to allow easy strapping. Once strapped, the bale will be safely ejected from the chamber with the raise of the platen. The rugged design will ensure years of worry-free operation. Its ability to work with high-volume cardboard and OCC recycling and many other solid waste materials makes it a versatile machine. It produces mill size bales that weigh up to 450 kgs, ideal for recycling and transportation. The finished bale size is easy to handle by existing forklifts and other machinery and is transportable on a variety of freight vehicles. Ideal For: Supermarkets, Retail Stores, Hotels, Schools, Grocery Stores, Hospitals, Offices, Restaurants and More. |  |
|
|
Features And Benefits Of The Vertical Cardboard Baler / Mill Size Baler:
|
Details And Options
The cardboard baler series comes with advanced and convenient standard features which are particularly designed with the properties of baling material in mind, for enhanced user experience and value. This baler series will make your problems with scrap be things of the past, with vastly increased revenue as additional benefit from its operation.

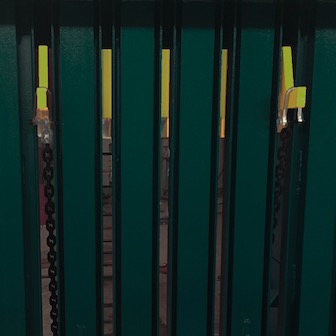

STANDARD AUTO CHAIN BALE EJECTOR
After a bale is tied up, place the ejector chains on the ram retract hooks on the back of the baler. The bale will be automatically ejected out from the baler chamber with the platen retracts.

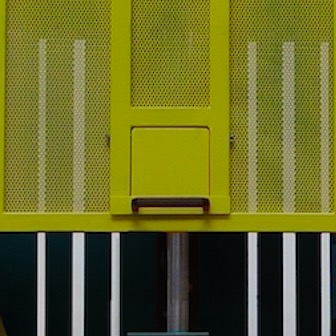

AUTO SAFETY FEED GATE
The feed gate automatically opens at the end of each baling cycle when the platen moves up. It saves space occupation, labor and improves efficiency.

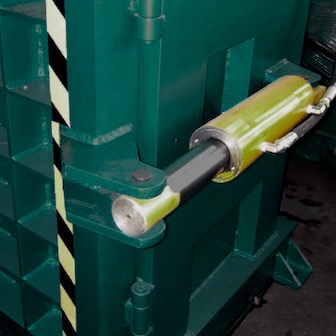

OPTIONAL HYDRAULIC CHAMBER DOOR LOCKING SYSTEM
The baler chamber door can automatically open or close by pressing a button on electric panel instead of handwheel, which saves labor and increases efficiency.

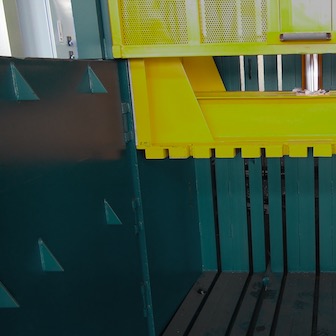

RETAINING TEETH
Retaining teeth on chamber door and rear of the baler can prevent the compressed material from spring back, thus increase the bale density and stability

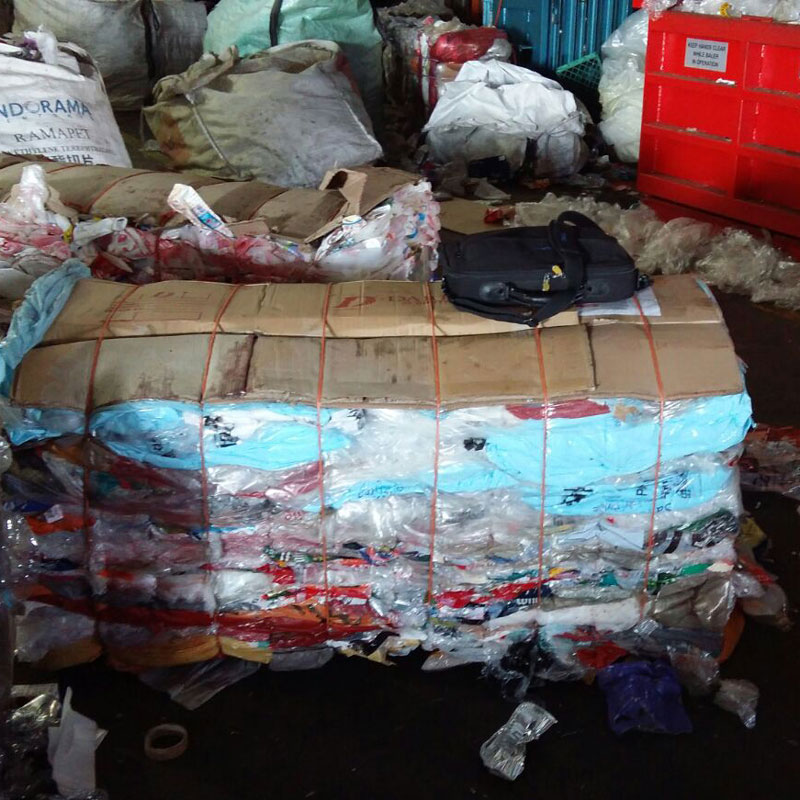

The Vertical Cardboard Baler / Mill Size Baler Can Bale:
Cardboard/OCC
Paper
Paper Carton
Soft Plastics
Plastic Bottles (PET, HDPE)
Aluminum Cans
Textiles
Foam
The Right Industrial Waste And Recycling Baler For The Job!
Makabale offers 5 standard models of vertical cardboard baler / mill size baler for sale. This baler press is built for a variety of waste material types and industries. Choose from these models or contact us for a customized baler to meet your unique requirements.
|
Baler Model |
Bale Size (L x W x H) |
Bale Weight (OCC) |
Feed Opening (L x H) |
Press Force (max.) |
Bales Per Hour (approx.) |
|
VMS30-8060S |
800mm x 600mm x up to 900mm |
60-120kg (132-264lbs) |
800mm x 500mm (31” x 20”) |
30tons (66,000 lbs) |
5 |
|
VMS30-11070S |
1100mm x 700mm x up to 900mm |
100-200kg (220-440lbs) |
1100mm x 600mm (43” x 24”) |
30tons (66,000 lbs) |
4 |
|
VMS30-15276S |
1520mm x 760mm x up to 1120mm |
200-350kg (440-770lbs) |
1520mm x 680mm (60” x 27”) |
30tons (66,000 lbs) |
3 |
|
VMS50-11070S |
1100mm x 700mm x up to 900mm |
150-280kg (330-616lbs) |
1100mm x 600mm (43” x 24”) |
50tons (110,000 lbs) |
4 |
|
VMS50-15276S |
1520mm x 760mm x up to 1120mm |
250-450kg (550-990lbs) |
1520mm x 680mm (60” x 27”) |
50tons (110,000 lbs) |
3 |
*Specifications & Dimensions are subject to change without prior notice. Bale weights and performance rates are approximate and depending on material type, feed speed, and other variables in baling process.
Cardboard Baler / Mill Size Baler Resources
Cardboard Baler / Mill Size Baler Frequently Asked Questions
A cardboard baler is a machine that compacts large amounts of cardboard into manageable, easy-to-transport bales. This process helps in recycling and waste management.
The baler machine compresses loose cardboard into compact bales by using hydraulic pressure. Generally, there are 4 steps: 1) Feed waste material in; 2) Compressing; 3) Tie up the bale; 4) Eject the bale out.
Most balers can handle various types of cardboard, including corrugated boxes, paper board, and packaging materials. Check the specifications for compatibility.
Cardboard balers reduce waste disposal costs and make recycling more efficient and profitable. They're an essential investment for those looking to optimize their operations.
Proper training, adherence to manufacturer guidelines, and regular maintenance are essential.
Determine your needs mainly by assessing the volume of cardboard waste, available space, budget, and desired bale size.
Regular inspections, lubricating, replacing hydraulic oil regularly, and alignment checks will keep a baler running smoothly. The maintenance routine is vital to the lifespan of the baler machine.
Makabale cardboard balers can handle different materials besides cardboard, such as plastics, paper, and aluminum cans. Consult us before baling.
The Costs of a cardboard baler can vary widely based on machine size, functionality, baler type, and its features.
Makabale supplies cardboard balers in all sizes, from small mini size, medium size to large size. Contact us today if you are looking for a cardboard baler for your recycling business.
