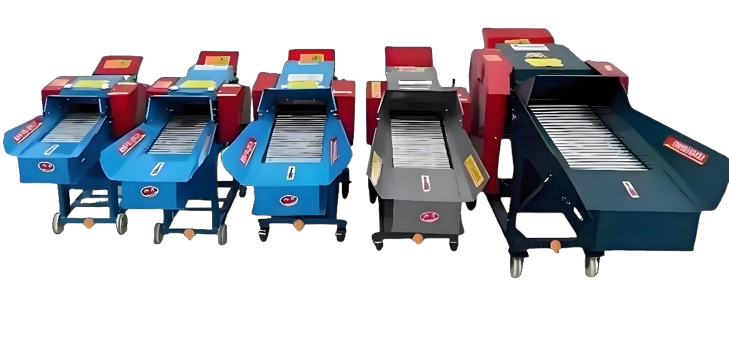

STRAW CHOPPER
Straw Chopper for Livestock Feed ProcessingOur straw chopper is designed to process agricultural residues such as corn stalks, wheat straw, and rice straw, turning them into finely chopped material ideal for feeding livestock such as cattle, sheep, horses, and deer. The machine operates through cutting and chopping mechanisms to ensure efficient material processing. Powered by an electric motor, the material enters between the rollers, it is gripped and fed into the cutting mechanism. The rotating blades then chop the material, which is discharged through the outlet at high speed. This machine provides an efficient solution for converting crop residues into nutritious livestock feed. |  |
General Specifications:
| Model | Motor Power | Number of Blades | Rotor Speed | Overall Dimensions | Throughput (approx.) |
| XB-200 | 4.5kW (6hp) | 6pcs | 1400rpm |
1200mm x 430mm x 850mm (47" x 17" x 33") |
2-3 t/h (4400-6600lbs/h) |
| XB-300 | 4.5kW (6hp) | 6pcs | 1400rpm |
1460mm x 510mm x 900mm (57" x 20" x 35") |
3-4 t/h (6600-8800lbs/h) |
| XB-400 | 5.5kW (7.5hp) | 6pcs | 1400rpm |
1800mm x 520mm x 850mm (71" x 20" x 33") |
4-6 t/h (8800-13200lbs/h) |
| XB-500 | 7.5kW (10hp) | 6pcs | 1400rpm |
1850mm x 570mm x 900mm (73" x 22" x 35") |
5-7 t/h (11000-15400lbs/h) |
| XB-600 | 7.5kW (10hp) | 6pcs | 1400rpm |
2020mm x 570mm x 1000mm (80" x 22" x 39") |
6-8 t/h (13200-17600lbs/h) |
| XB-800 | 11kW (15hp) | 6pcs | 1400rpm |
2300mm x 750mm x 1050mm (91" x 30" x 41") |
8-10 t/h (17600lbs-22000lbs/h) |
| XB-1000 | 22kW (30hp) | 6pcs | 1400rpm |
2480mm x 930mm x 1100mm (98" x 37" x 43") |
10-15 t/h (22000-33000lbs/h) |
*Throughput varies depending on the material.
