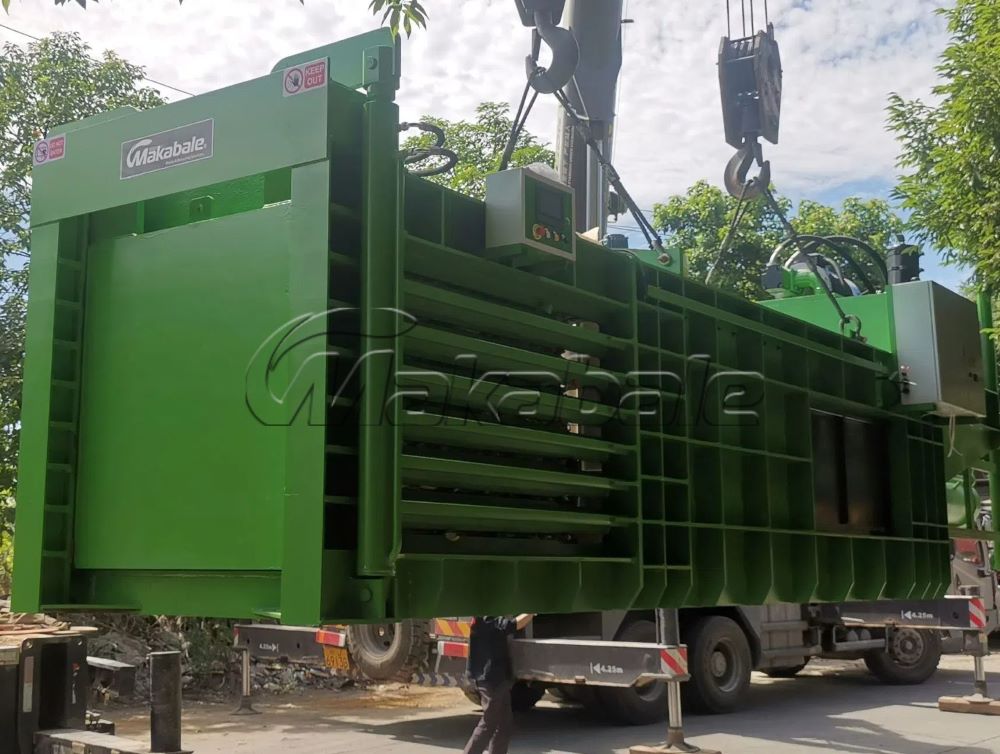

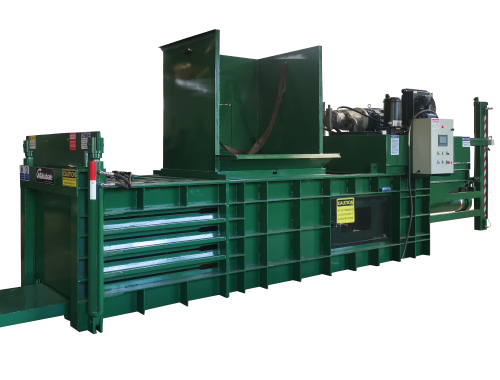

CLOSED END MANUAL TIE HORIZONTAL CARDBOARD BALER
The Closed End Manual Tie Horizontal Baler Is A Baler To Make Extremely Dense Bales.Makabale has a premium line of horizontal balers that function best for baling numerous types of waste materials in an efficient manner. These materials include shredded paper, cardboard (OCC), PET bottles, aluminum cans, HDPE containers, plastic packaging, textile waste and more. When any of these materials are fed into the horizontal baler, they could be done so through any of the following methods: conveyor belt, hand, feed chute, air system, cart dumper or grapple. There is a lower position photo sensor in the hopper that can detect the material that has been fed, thereby controlling the ram cycling automatically. The portcullis bale ejecting door opening and closing mechanism are automatically working through hydraulics. The bale, without any fuss, is fully ejected out by the platen when the process is complete. The person operating the baler only needs to tie off the bale. This horizontal baler is a closed-door manual tie variant which is best used for any facility that needs to process or dispose of recyclable materials with the volume exceeds what is productive to handle with vertical balers. The Makabale closed door horizontal baler line is designed with advanced features and quality materials that guarantee years of reliable service and maximum performance. Ideal For: Cardboard/Paper Recyclers, Distribution Centers, Manufacturing Facilities, Printing Plants, Recycling Centers, Textile Waste Recyclers, Scrap Yards. |  |
|
|
Features And Benefits Of The Closed End Horizontal Cardboard Baler:
|
Details And Options

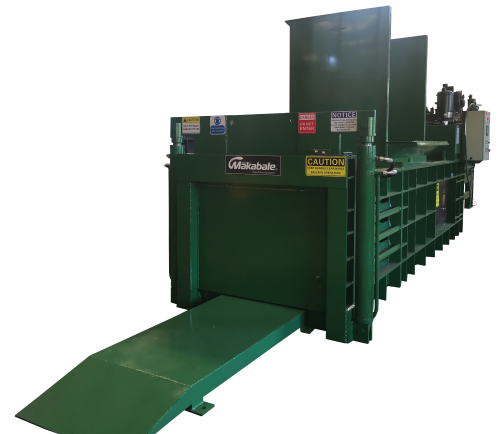

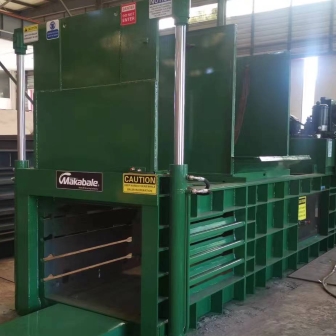

HYDRAULIC PORTCULLIS END DOOR
The vertical bale ejecting door, which is open / close automatically, enables the act of continuous bale ejection without the requirement of removing each bale once it has been accomplished. This is very efficient because it maximizes output and saves on labor costs.

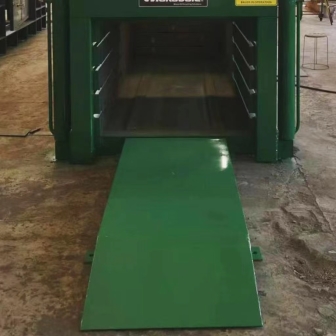

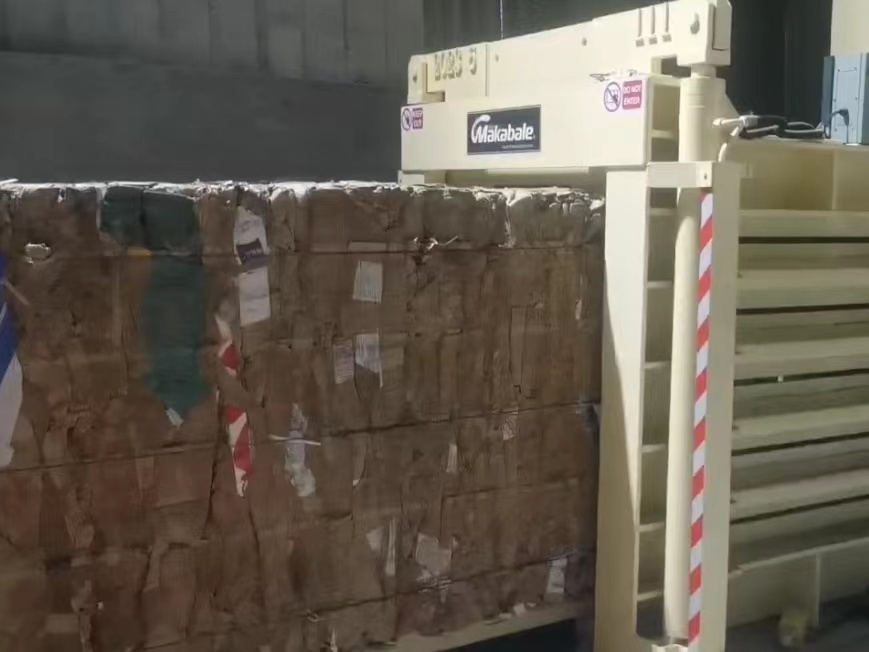

BALE EXIT PLATFORM
This feature gives you the convenience of removing in a faster manner the completed bales.

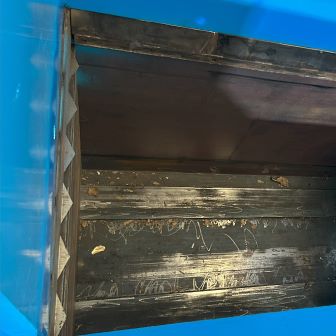

SHEAR BLADES
This feature is available for ensuring continuous feeding and the prevention of a jam to happen.

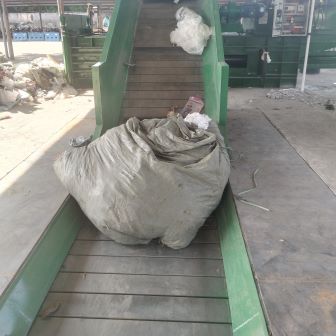

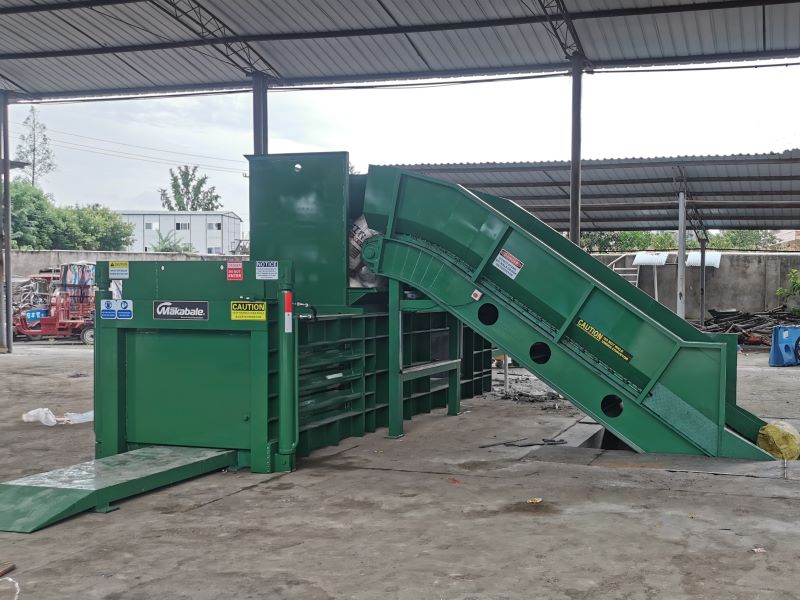

OPTIONAL INFEED CONVEYOR
If you want continuous and automatic feeding, you can make use of the conveyor option. There are 2 types of conveyors: underground or pit type and the above ground type.
The Closed End Horizontal Cardboard Baler Is Typically To Bale:

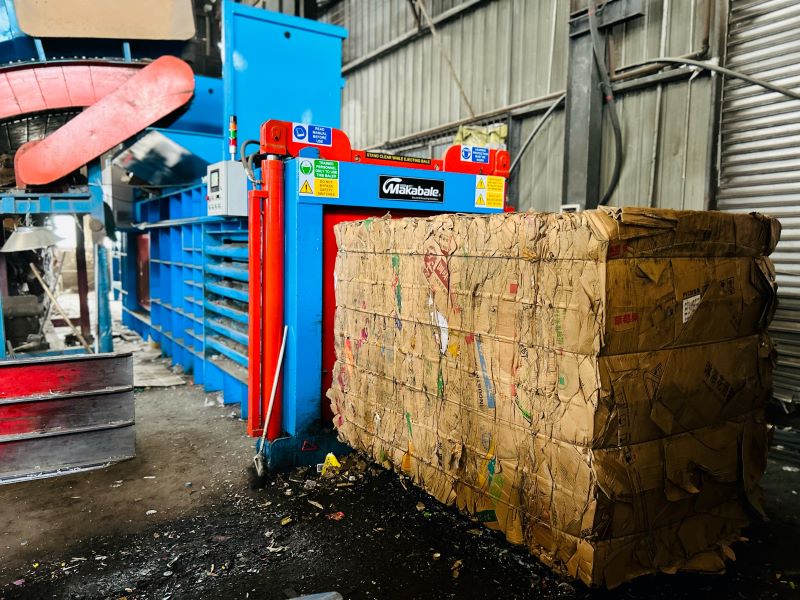

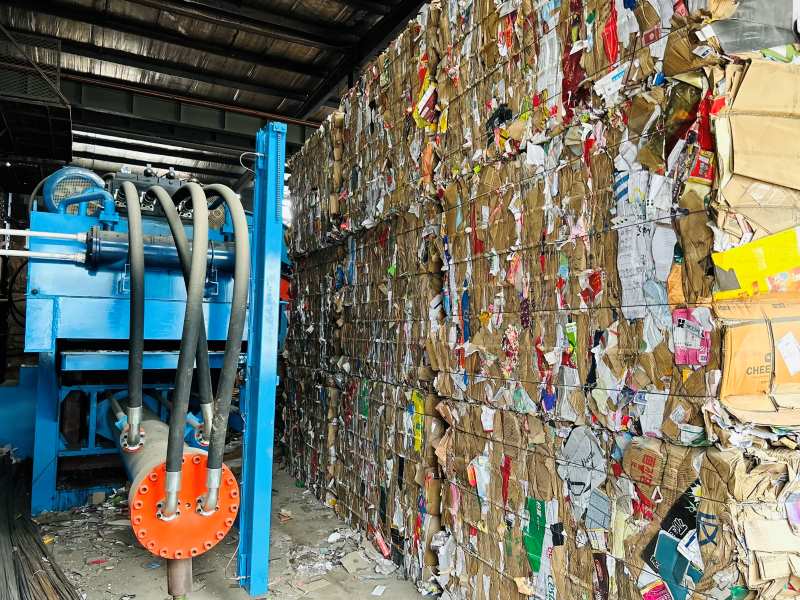

Cardboard/OCC
Paper
Paper Carton

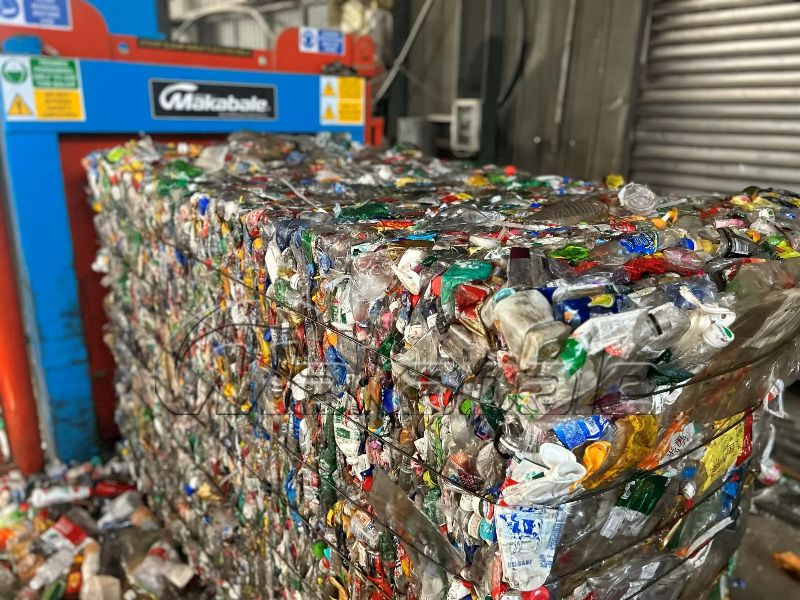

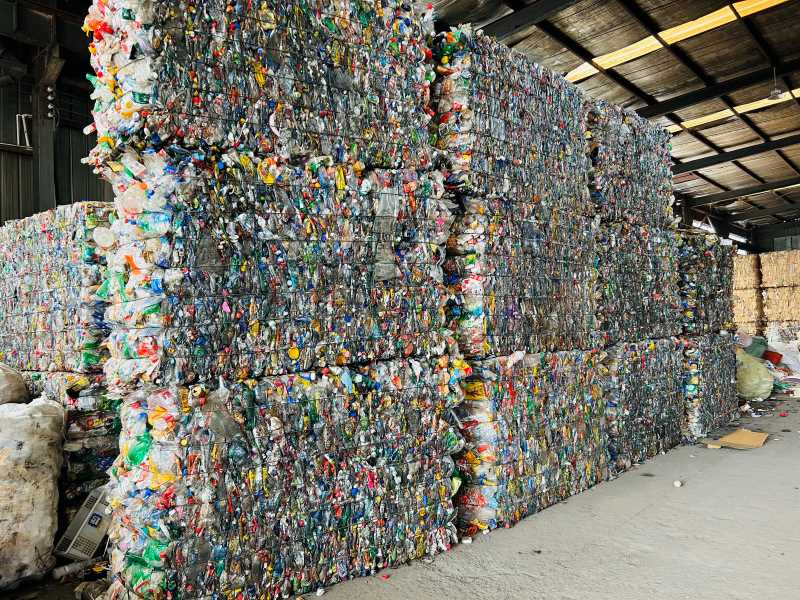

Plastic Bottles
Aluminum Cans
Soft Plastics
Textiles
Municipal Waste
The Right Makabale Horizontal Baler Machine For The Job!
Makabale offers 7 standard models of closed-door horizontal baler for sale. All these baler models are built for a variety of products and industries. Choose from these models or contact us for a customized baler to meet your unique requirements.
| Baler Model | Bale Size (L x W x H) | Bale Weight (OCC) | Feed Opening (L x W) | Press Force (max.) | Bales Per Hour (approx.) |
| HMT40 | 1000mm x 750mm x 750mm (39” x 30” x 30”) |
150-300kg (330-660lbs) |
1200mm x 750mm (47” x 30”) |
40tons (88,000lbs) |
3 |
| HMT60 | 1000mm x 750mm x 750mm (39” x 30” x 30”) |
200-350kg (440-770lbs) |
1300mm x 750mm (51” x 30”) |
60tons (132,000lbs) |
3 |
| HMT80 | 1200mm x 1100mm x 750mm (47” x 43” x 30”) |
400-550kg (880-1210lbs) |
1300mm x 1100mm (51” x 43”) |
80tons (176,000lbs) |
3 |
| HMT100 | 1200mm x 1100mm x 750mm (47” x 43” x 30”) |
400-600kg (880-1320lbs) |
1500mm x 1100mm (59” x 43”) |
100tons (220,000lbs) | 3 |
| HMT120 | 1500mm x 1100mm x 1100mm (59” x 43” x 31”) |
700-1000kg (1540-2200lbs) |
1500mm x 1100mm (59” x 43”) |
120tons (264,000lbs) | 3 |
| HMT150 | 1600mm x 1100mm x 1250mm (63” x 43” x 49”) |
900-1200kg (1980-2640lbs) |
2000mm x 1100mm (79" x 43") |
150tons (330,000lbs) | 3 |
| HMT200 | 1600mm x 1100mm x 1250mm (63” x 43” x 49”) |
1000-1350kg (2200-2970lbs) |
2000mm x 1100mm (79" x 43") |
200tons (440,000lbs) | 3 |
*Specifications & Dimensions are subject to change without prior notice. Bale weights and performance rates are approximate and depending on material type, feed speed, and other variables in baling process.
Closed Door Horizontal Baler Resources
Closed-door Horizontal Baler Frequently Asked Questions
A closed-door horizontal baler is a type of recycling baler that is used to compress waste materials into bales. It is different from an open-door baler in that it features a closed door at the end of pressing chamber that generates force to the material when the ram is compressing the material against the door, which ensures a much denser and securer bale.
Closed-end horizontal balers can be typically used to bale materials like cardboard, paper, plastic, foam, PET bottles, HDPE containers, cloth, aluminum cans, and other materials that are compressible and able to fit inside the baler. They are specially ideal choice when baling rebounding material.
The time of baling process for a closed-door horizontal baler can take anywhere from 5-20 minutes. It can be affected by many factors, for example, the size and type of material being processed, the feeding speed, the tying speed, the bale size, and the baler model you are using.
A closed-door horizontal baler typically requires a three-phase industrial power source.
1. Ensure the area around the baler is clear of obstructions, including personnel.
2. Wear personal protective equipment such as safety glasses and gloves.
3. Do not enter or place any part of your body into the baler when it is in operation.
4. Ensure the baler is properly lubricated and maintained.
5. Ensure the machine is positioned on a solid level surface with proper fixings for stability.
6. Users must be trained prior to being assigned as an operator and age must be above 18.
7. Do not leave the baler unattended when it is running.
8. Do not overload the baler.
9. Keep hands and loose clothing away from moving parts.
10. Ensure all safety guards and devices are in good order before operating the baler.
11. Do not overheat the baler.
The capacity of a closed-door horizontal baler depends on the model of the baler and the material being baled. Generally, manual-tie horizontal balers can produce bales ranging from 800kg/h up to 12000kg/h for OCC.
